Multi-Function Tester Kit

This is an economical and commonly utilized transistor tester.It can identify NPN and PNP transistors, capacitors, resistors, diodes, triodes, N-channel and P-channel MOSFETs, triacs, and batteries, among others.Additionally, it is capable of detecting infrared waveforms.

This device is versatile enough to identify NPN and PNP transistors, capacitors, resistors, diodes, triodes, N-channel and P-channel MOSFETs, IGBTs, JFETs, triacs, and batteries, among others.It can also recognize zener diodes and features a self-calibration function.After performing a detection, align the infrared remote control with the "IR" light and press a button on the remote.If the detector successfully decodes the signal, it will show the data code and the infrared waveform.

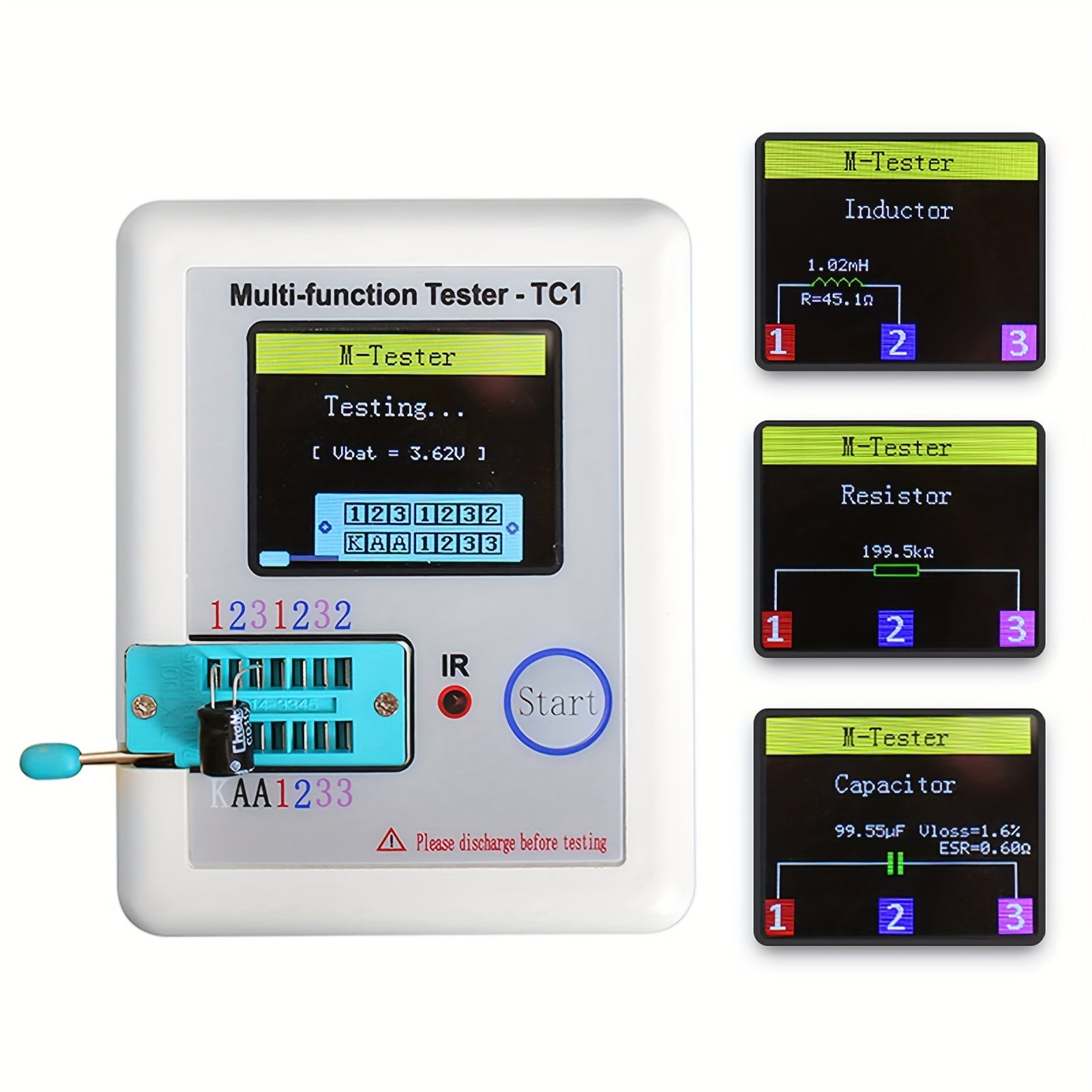

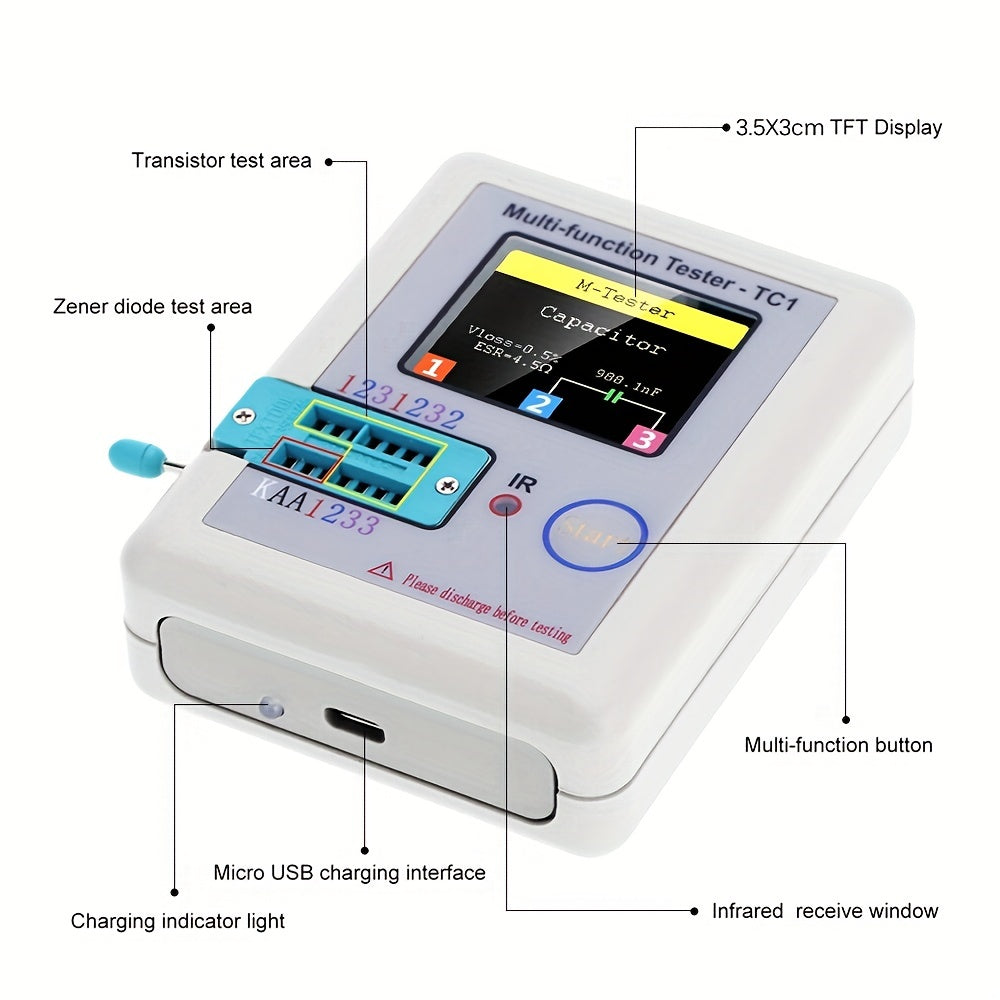

This device operates with a single button, which allows for automatic detection and shutdown.You can also use the multifunctional button to turn off the detector.Place the component pins in the designated area, turn the small handle, and the detector will conduct the test on its own, with the results clearly shown on the backlit TFT screen.Unlike standard black and white displays, this detector presents results in color.

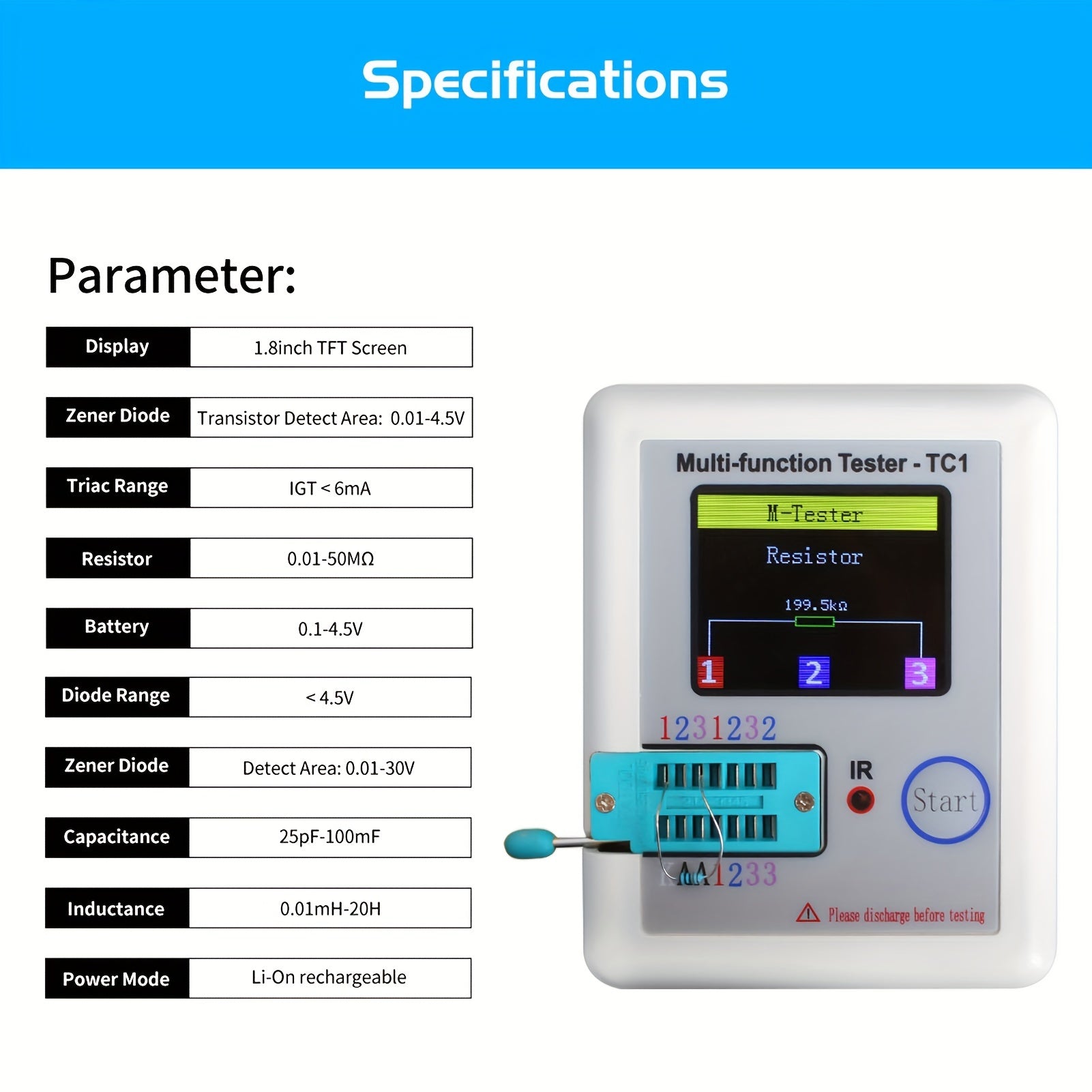

Details: Power Source: Rechargeable Lithium Battery Display Size: 3.5 * 3cm TFT Screen Diode Measurement Range: Less than 4.5V Zener Diode: Transistor Detection Range: 0.01-4.5V Zener Diode Detection Range: 0.01-30V Triac Measurement Range: IGT less than 6mA Capacitance Range: 25pF-100mF

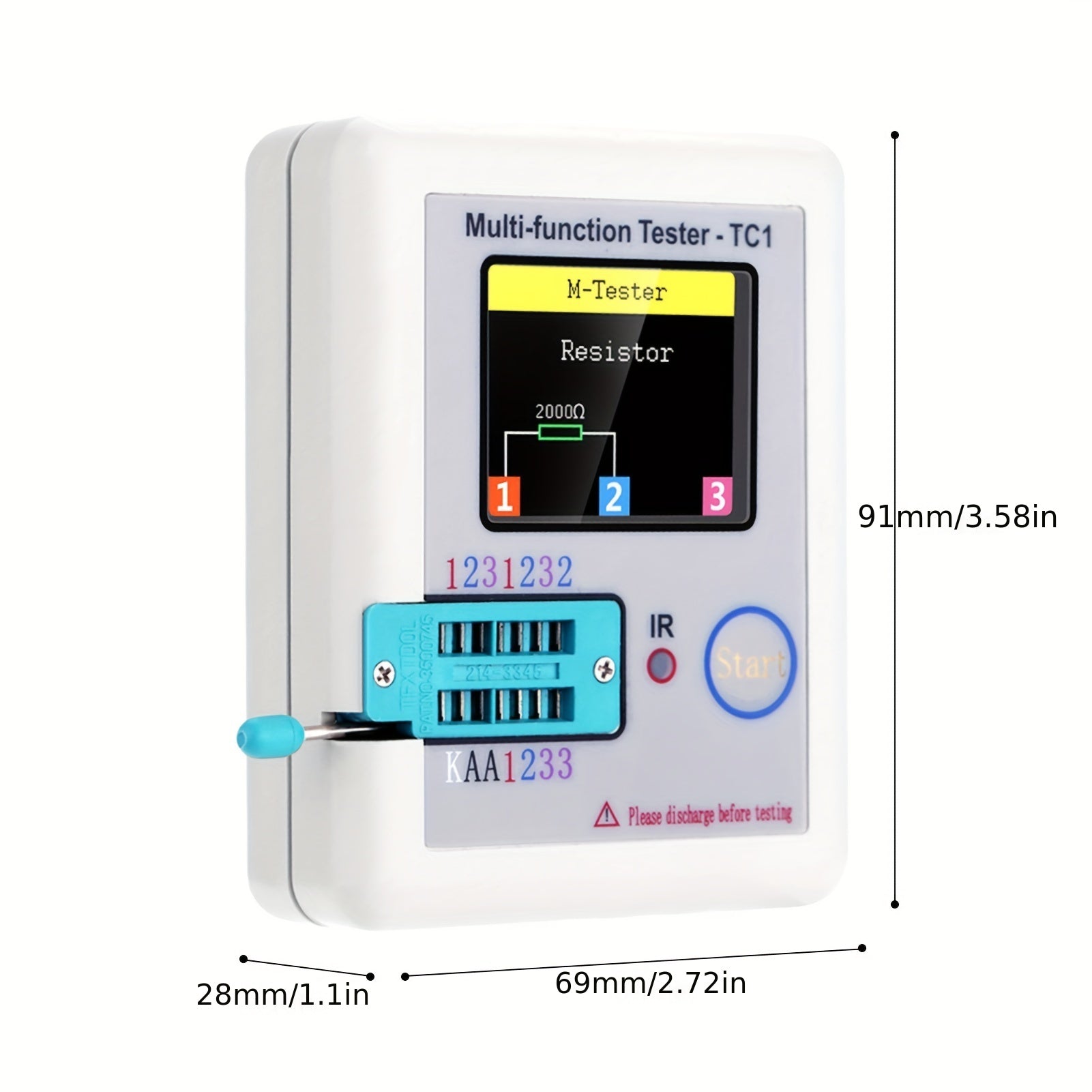

Resistance: 0.01-50MΩ Inductance: 0.01mH-20H Voltage: 0.1-4.5V Dimensions: 8.8 * 8 * 2.8cm / 3.47 * 3.15 * 1.10in Weight: 111.5g / 3.94oz

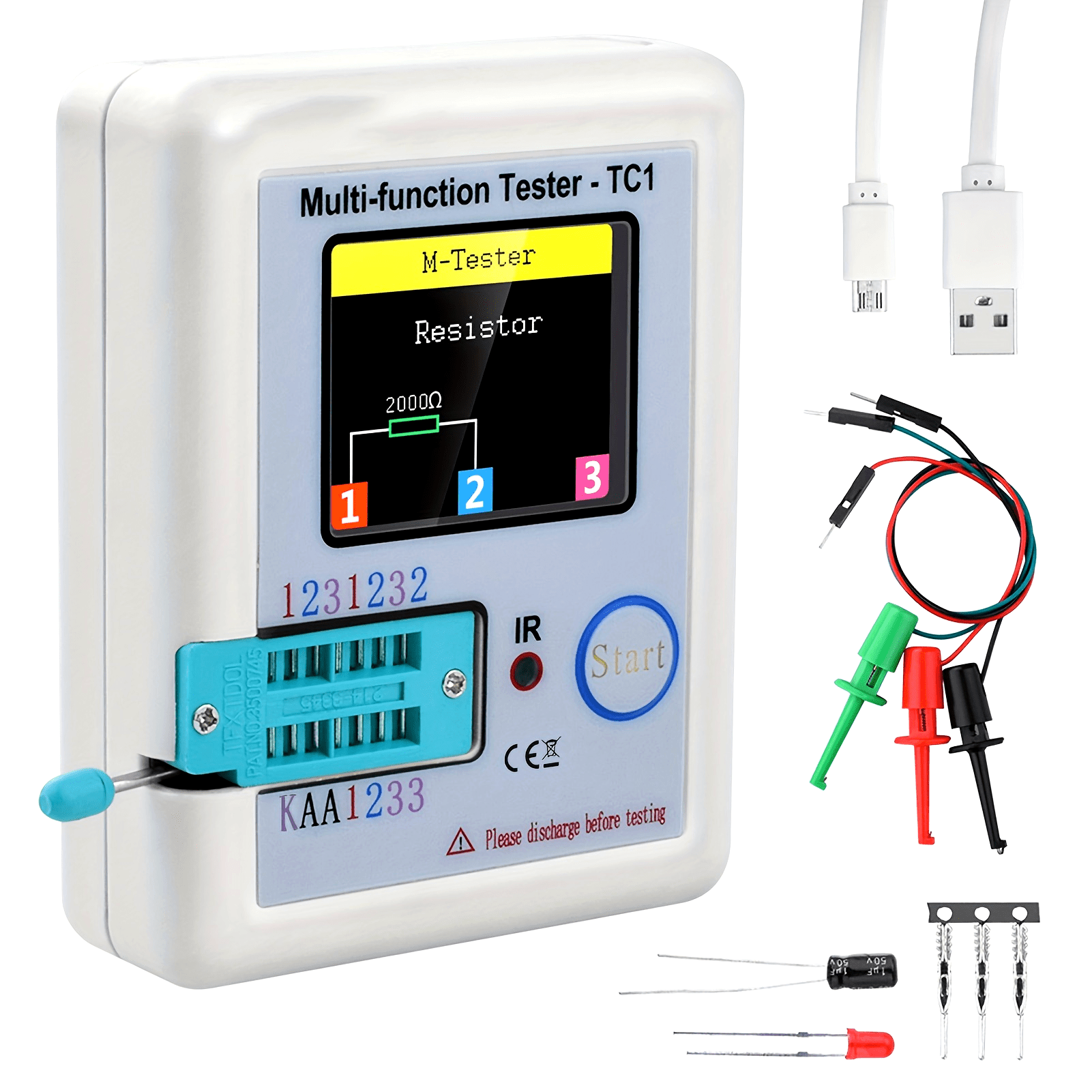

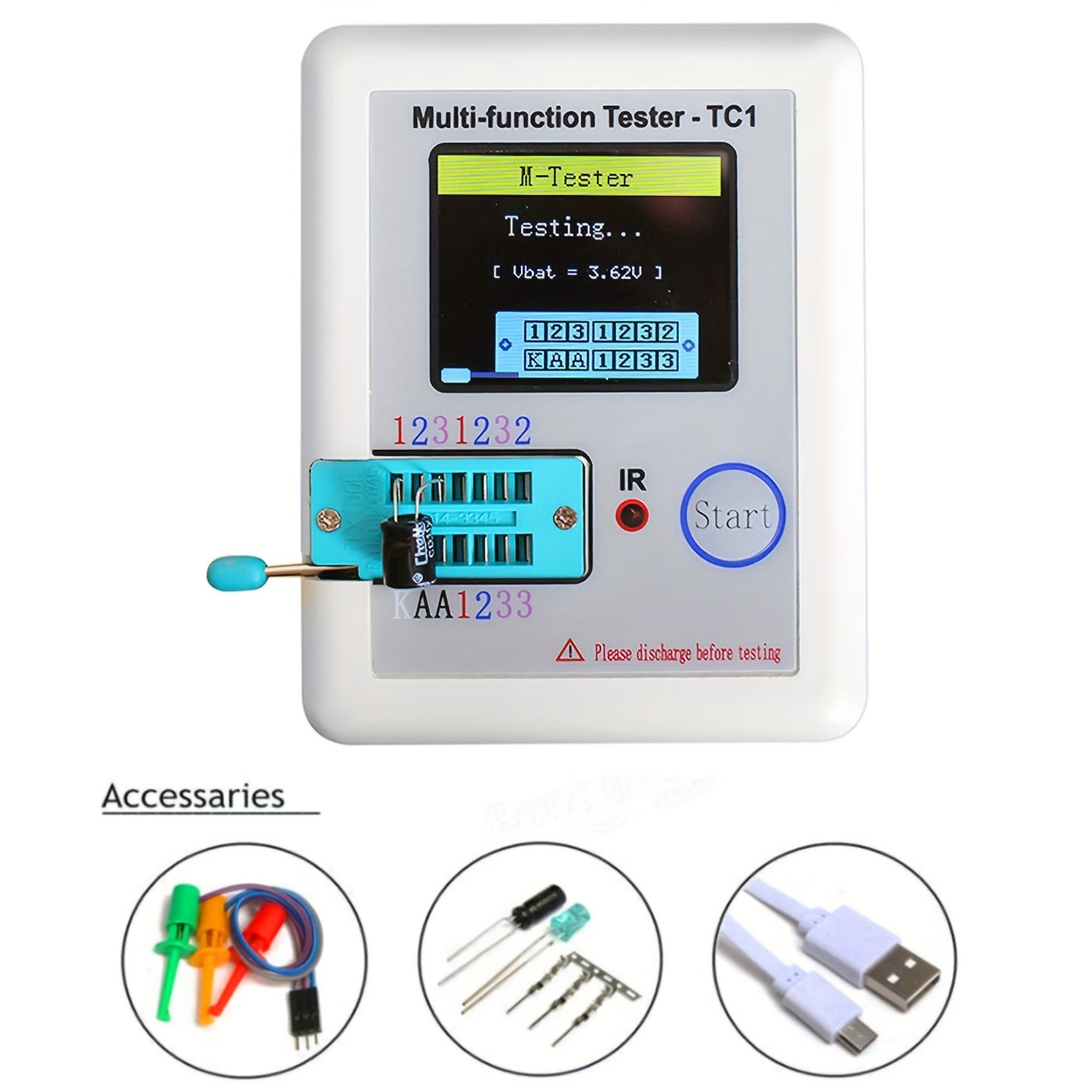

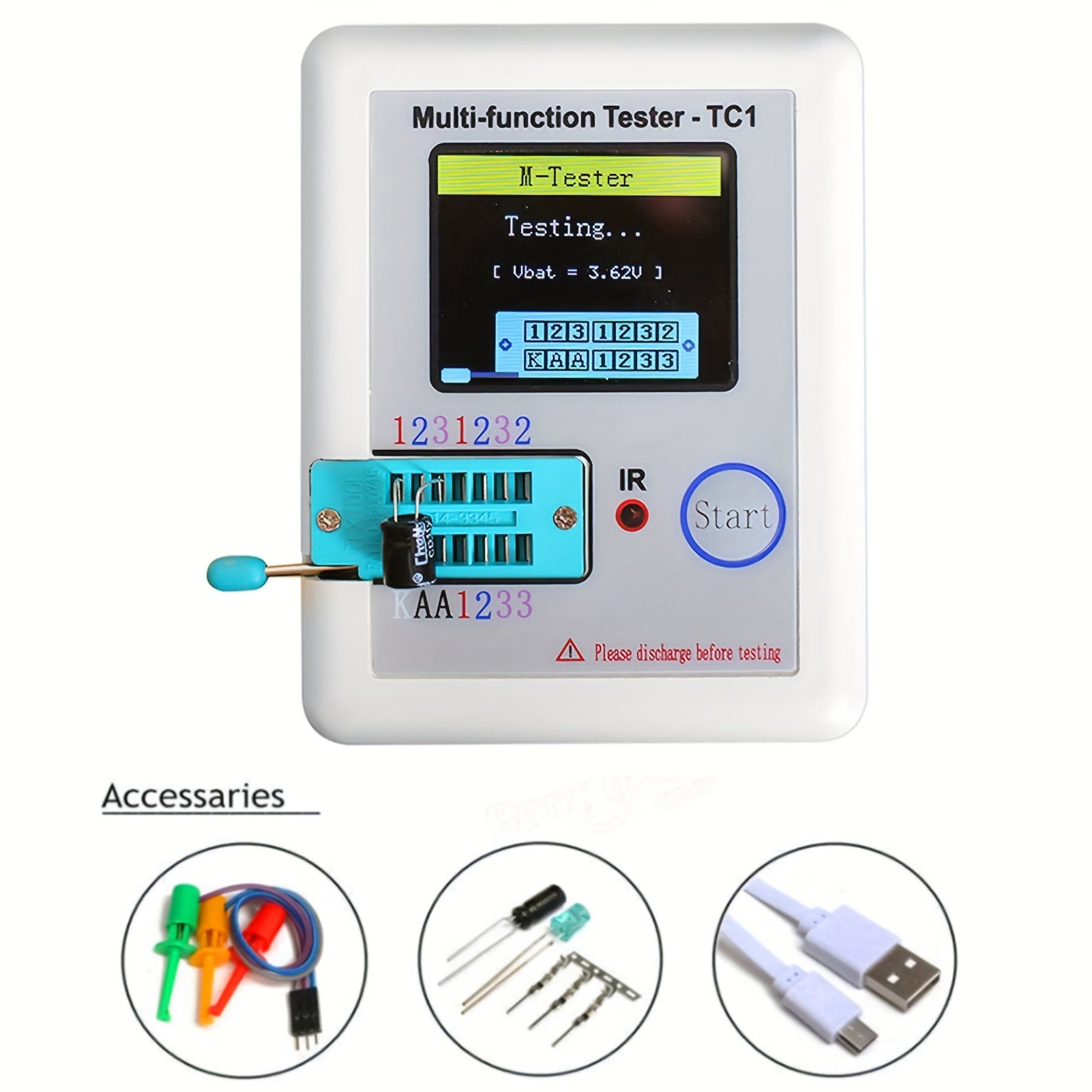

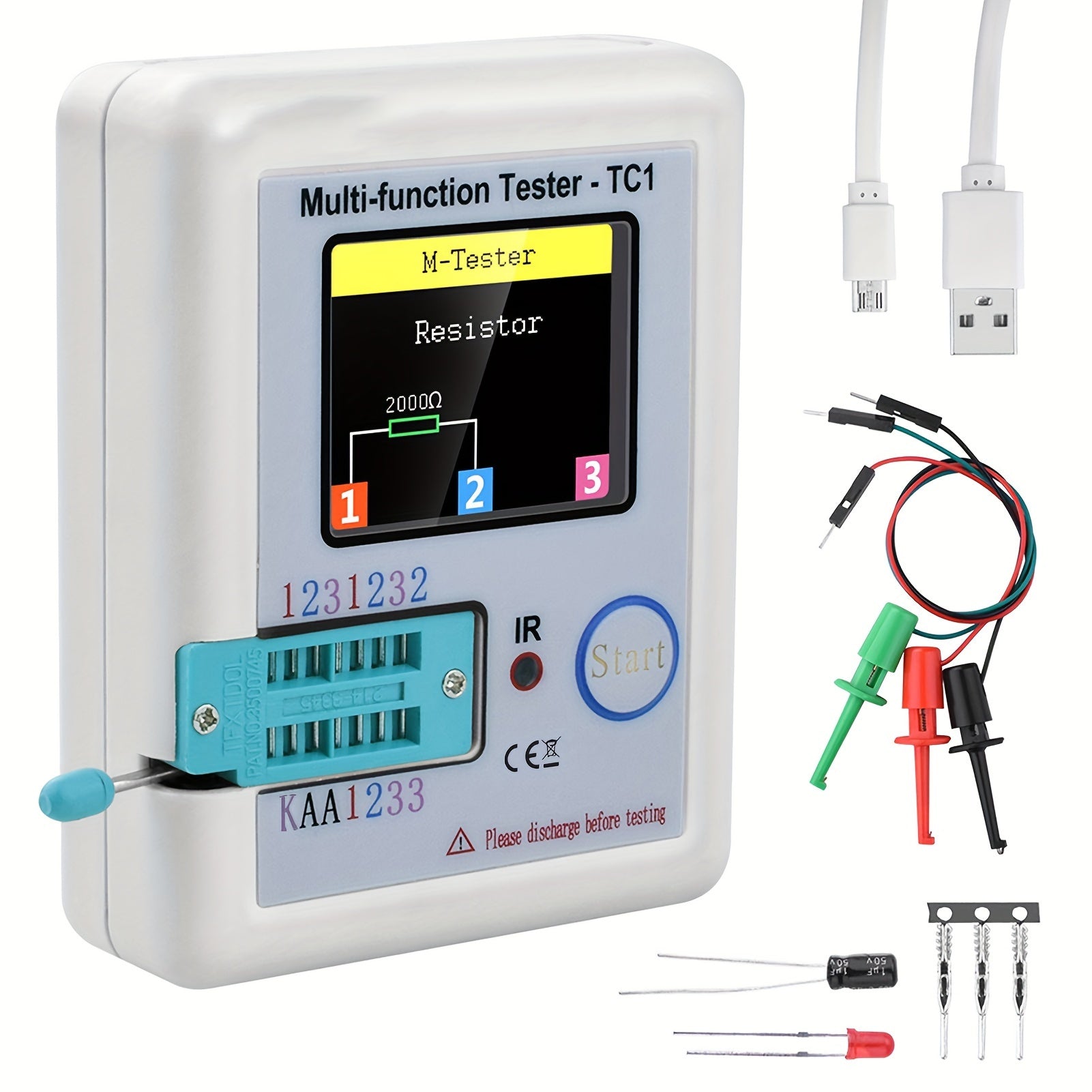

Items included in the package: 1 Transistor Tester, 1 Electronic Component Set (random selection), and 3 Test Hooks (random selection).

Important: Prior to testing, ensure that the electronic components are discharged to safeguard the detector. If the voltage and internal battery drop below 3V, recharge it before use. Utilize a 5V battery or USB port for charging.
